high-speed electro automatic bottle blow molding machine
| Unit Price: | 50000~65000 USD |
|---|---|
| Min. Order: | 1 Set/Sets |
| Packaging: | Standard exporting machine packing with plastic film |
|---|---|
| Transportation: | Ocean |
| Supply Ability: | 500 Set/Sets per Year |
| Port: | ShunDe/GuangZhou/ShenZhen China |
Product Description
Extrusion Blow Molding Machine > Electric-hydarulic EBM Machine > high-speed electro automatic bottle blow molding machine
high-speed electro-hydraulic hybrid automatic bottle blow molding machine

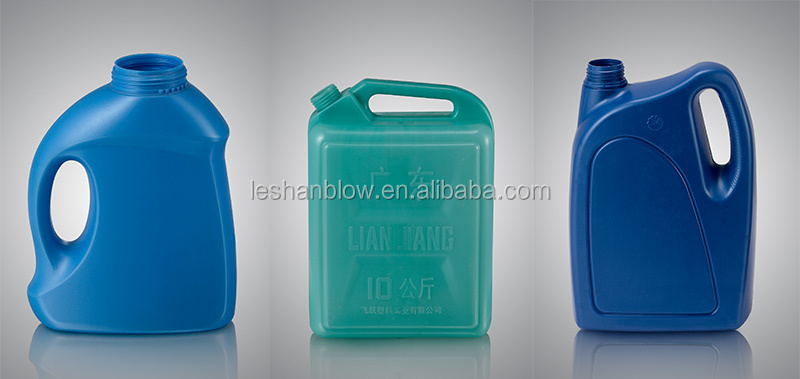

●Suitable for producing 15-100L different size jerrycan,open-top barrels and Others chemical packaging products. Adopt high output extrusion system,accumulating die head. Optional view strip line system. Optional hydraulic servo control system.Extrusion Blow Molding Machine
Product Details
| Type: | extrusion blow molding machine |
| Model: | SCJ-75EH2X1.10D |
| Material: | PE, PP |
| Suitable for: | box,barrels, tank,hollow plate, tube, ball, etc. |
| Warranty: | 1 Year |
| Features: | No. of station: 2 |
| | No. of die head: 1 |
| | Extruder diameter:75mm |
| | Max clamping distance of mould:580mm |
| | Min clamping distance of mould:230mm |
| | Thickness control system |
| | Machine customization |
Performance characteristics
1. Equip with servo motor to drive die-head, blow pin and carriage movement.
2. High reliability and stabilization PLC (with touch screen) to control operation and temperature (with PID function).
3. Blow pin adjust by setting parameters from the touch screen, free from mechanical adjusting.
4. Replace mechanical structure of hydraulic cylinder and sensor with servo motor and ball screw rod, providing accurate action, quick movement and fast responding.
5. Incorporate with electric lift platform and deflash device.
6. Use famous pneumatic, hydraulic and electrical control element with long life usage.
7. Optionally configurate with automatic material loading machine and product conveyor to meet flow line production.
8. Extruder uses variable frequency control which adapt to the change of extruder rotation speed in blowing process.
9. With parison control function, it’s able to control bottle thickness precisely.
2. High reliability and stabilization PLC (with touch screen) to control operation and temperature (with PID function).
3. Blow pin adjust by setting parameters from the touch screen, free from mechanical adjusting.
4. Replace mechanical structure of hydraulic cylinder and sensor with servo motor and ball screw rod, providing accurate action, quick movement and fast responding.
5. Incorporate with electric lift platform and deflash device.
6. Use famous pneumatic, hydraulic and electrical control element with long life usage.
7. Optionally configurate with automatic material loading machine and product conveyor to meet flow line production.
8. Extruder uses variable frequency control which adapt to the change of extruder rotation speed in blowing process.
9. With parison control function, it’s able to control bottle thickness precisely.
| Products Advantages | | | | | ||||
| 1. Reduce energy consumption up to 51%. Patent technology, full electric drive carriage and clamping unit, saving electricity power 250-300 degree. | | | | | ||||
| 2. Save labor cost. With three axes servo driven robots, it’s able to reduce 2 workers for each machine. Saving staff wage and management cost therefore. | | | | | ||||
| 3. Clamping force increased 10 times. With the theory of electrohydraulic cylinder, clamping force is 10 times of normal model in a closed cycle electrohydraulic system. | | | | | ||||
| 4. Carriage movement fast and precise. Carriage is driven by servo motor, instant accelerate, brake accurately, speed adjustable. | | | | | ||||
| 5. Blow pin is full electric driven. Response quickly and move smoothly. | | | | | ||||
| 6. Meet highly hygienic standard. Full electric driven machine is more suitable for the application of food, beverage, medicine etc. which has strict hygienic requirement. | | | | | ||||
| 7. Utility model patents and know how is applying to this machine. | | | | | ||||
