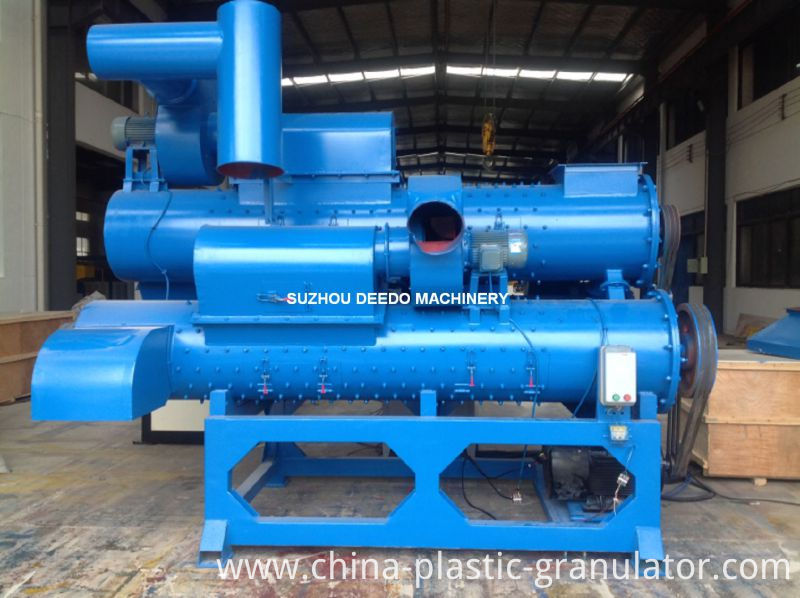

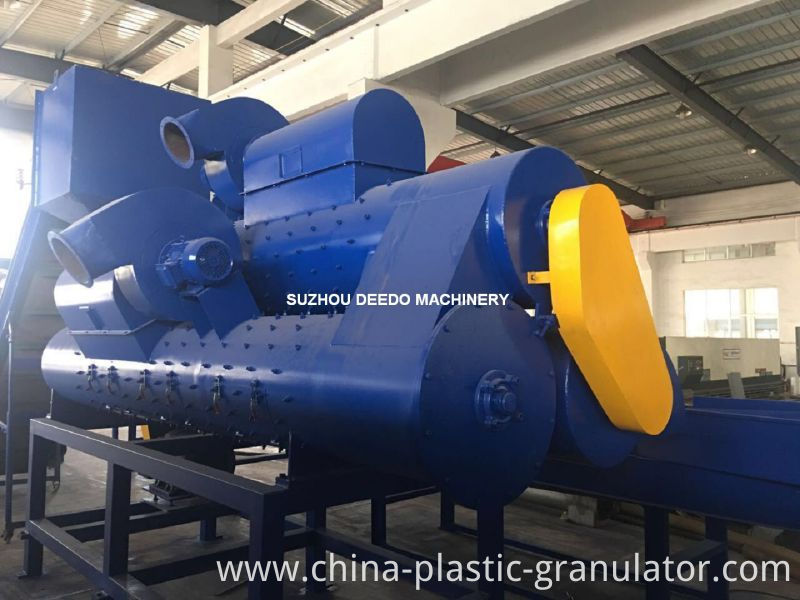

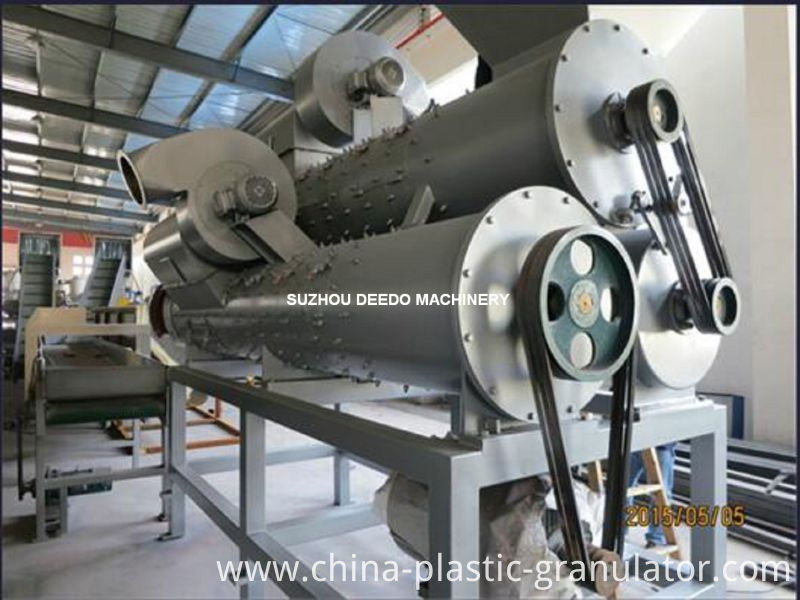

Pet Bottles Label Remover Machine

Productivity:
80 Sets/Year
Place of Origin:
Zhangjiagang City, China
Supply Ability:
80 Sets/Year
Certificate:
ISO9001
  • Mr. Steven Ni

Basic Info

Model No.:  DD-1000

Product Description

Model NO.: DD-1000 Plastic Type: PET Automation: Automation Certification: ISO9001:2008, CE Motor Power: 7.5-30kw Voltage: 380V 50 Hz 3p or Customized Speed: 500rpm Trademark: DEEDO Specification: stainless steel 304 HS Code: 84778000 Material Processed: Plastic Bottle Screw: Multi-Screw Computerized: Non-Computerized Fan Power: 3-6kw Motor Band: Siemens Blade Quantity: 68-96PCS Inverter: ABB Siemens Schneider or Required Transport Package: Wood Base and Wood Case Origin: Zhangjiagang City, China Product Description
This machine is used to waste plastic bottle label remover machine for washing Recycling line.It is high speed with 500Rpm and high efficiency and low broken.The Label Separation Rate more than 98%.We use famous motor,good material,The blade is easy to dismounting,so we can ensure the machine quality.We also can customized it to you according to your requirement.

Two shaft PET bottle label remover machine
1 Model DD1000
2 Main Motor power 30KW
3 Production capacity 1000kg/hour
4 Diameter of main shaft 219mm
5 Working method By Spiral friction separation and air sucking
6 Clean Ratio for label remove 97% clean for label removing
7 Weight 2500kg
8 Overall dimension 4000X2200X1800mm (L*W*H)
9 Height under machine 1000mm
10 There are 2pcs absorb label fans. Motor 4KW/pcs ;totally 8kw for two sets of air blow for suck label
11 Rotary speed for main shaft 480rpm
12 Rotary diameter for main shaft 600mm
13 Effective length of chamber 3500mm
14 Collect label ways customized mesh bag
15 The material of knife rest steel casting
16 The material of knife tungsten steel
17 The main body material A3
18 The advantage of remove the label for triaxial It use 3 times remove label, make bottle label thoroughgoing separate,it reach to 100% .
19 Knife can dismantle Yes

Three Shaft PET bottles label remover machine
1 Model DD1000
2 Main Motor power 30KW
3 Production capacity 1000kg/hour
4 Diameter of main shaft 219mm
5 Working method By Spiral friction separation and air sucking
6 Clean Ratio for label remove 100% clean for label removing
7 Weight 3500kg
8 Overall dimension 4000X2200X2600mm
9 Height under machine 1000mm
10 There are 3pcs absorb label fans. Motor 4KW/pcs ;totally 12kw for three set of air blow for suck label
11 Rotary speed for main shaft 480rpm
12 Rotary diameter for main shaft 600mm
13 Effective length of chamber 3500mm
14 Collect label ways customized mesh bag
15 The material of knife rest steel casting
16 The material of knife tungsten steel
17 The main body material A3
18 The advantage of remove the label for triaxial It use 3 times remove label, make bottle label thoroughgoing separate,it reach to 100% .
19 Knife can dismantle Yes


 plastic bottle label remover machine parameter:
Model Capacity  Power Fan Power Label Separation Rate Appliction
LMD-11 300~500kg  7.5KW 3KW > 98% 500 kg/h pet washing line
LMD-22 1000-1500kg 22KW 3KW+3KW > 98% 1000 kg/h pet washing line
LMD-30 2000-3000kg 30KW 4KW > 98% 2000 kg/h pet washing line

Pet Bottles Label Remover MachinePet Bottles Label Remover MachinePet Bottles Label Remover MachinePet Bottles Label Remover MachinePet Bottles Label Remover MachinePet Bottles Label Remover Machine
