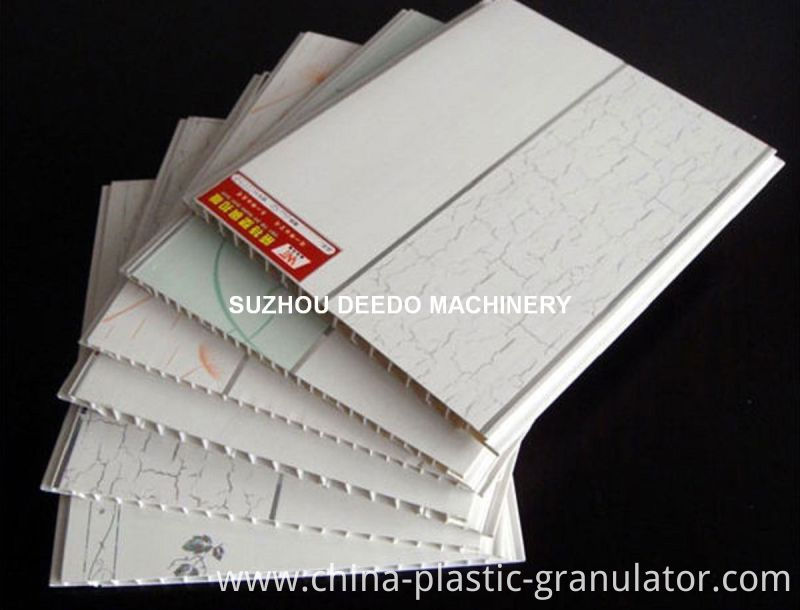

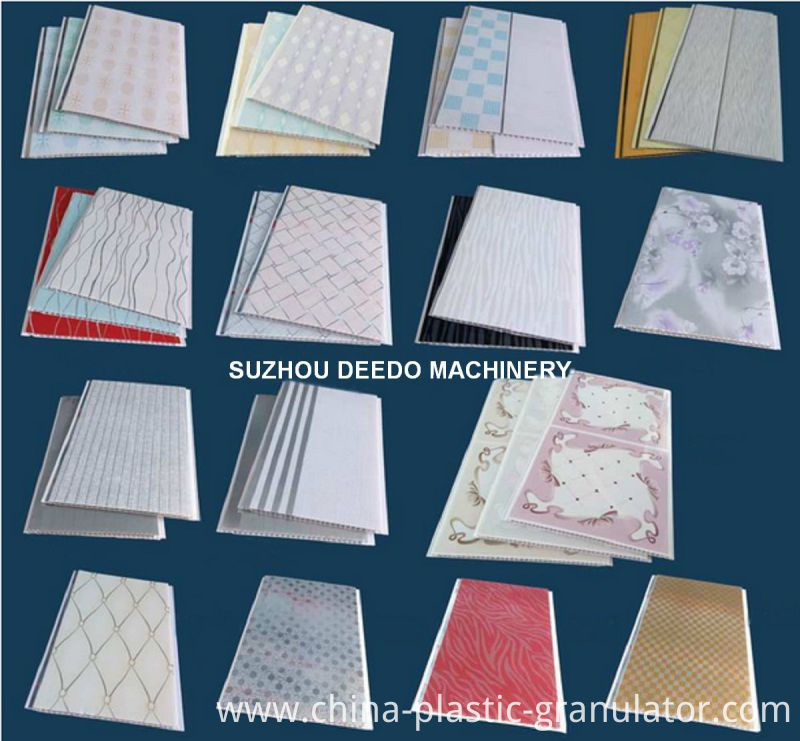

PVC Ceiling Wall Panel Extrusion Machine

Model NO.: SJSZ Screw: Double-Screw Computerized: Computerized Customized: Customized Extruder: Twin-Screw extruder machine Cabinet Electric Parts: ABB Siemens Schneider Motor: Simens Using: PVC Ceiling Making Machine Name1: PVC Ceiling Extrusion Line Machine Transport Package: Wood Base and Wood Case Origin: Zhangjiagang City, China Product Type: PVC Profile Automation: Automatic Certification: CE, ISO9001:2008 Raw Material: PVC Inverter: ABB Gear Box: Vertical Type Voltage: 380V 50 Hz or Depends Required Name: PVC Ceiling Wall Production Line Trademark: DEEDO Specification: PVC plastic product, size depends on customer HS Code: 84778020 PVC ceiling Profile extrusion machine, PVC ceiling making machine, PVC panel extrusion machine, PVC wall panel extrusion machine Main Model of  PVC Ceiling Machine :

Model	51/105	55/110	55/110	65/132	65/132
Applicable product width	160mm/200mm	250mm	300mm	400mm	600mm
Extruder	SJSZ51/105	SJSZ51/105	SJSZ55/110	SJSZ65/132	SJSZ65/132

Components of PVC profile production line

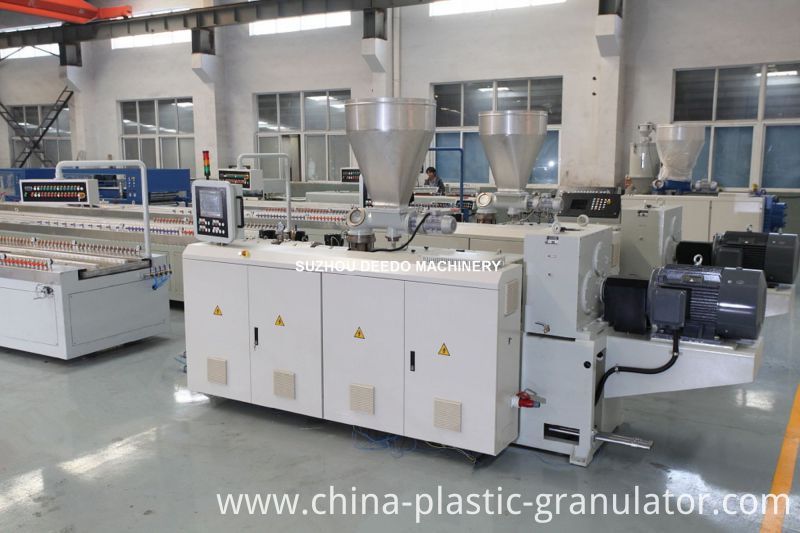

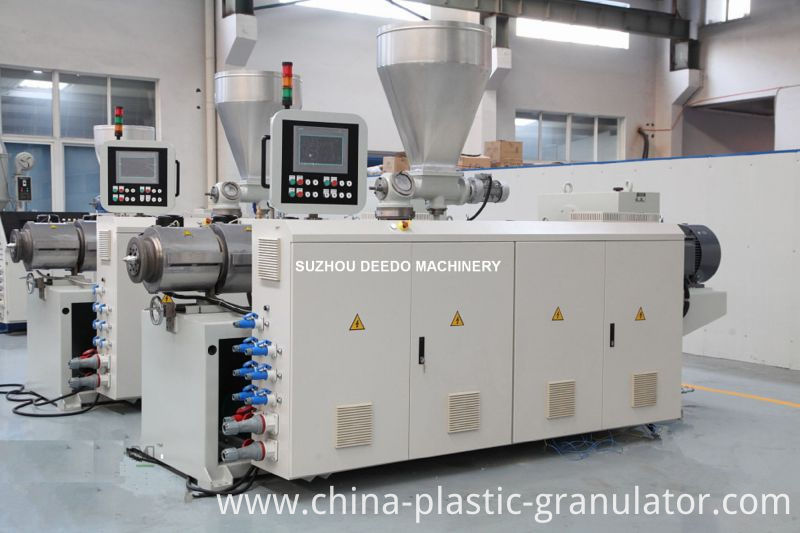

a. Conical twin screw extruder:
Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality Pipe extrusion.

b. Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality PVC profiles. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the PVC profiles fast calibrated and cooled.

c. Spraying and cooling table:
Rapid vacuum calibrating system allows the hot extruded PVC profiles to be cooled in a very short time and obtain the final size. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the sizing and cooling performance as well as the production speed.

d. Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6. Stacking:
Automatic stacking with fixed length


Payment, delivery and after sales services
1	Payment terms		30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time		60 days after receipt of prepayment
3	Packing method		Wooden cases/pallets with stretching films
4	Guaranteed time		18 months for mechanical parts, 12 months for electrical parts
5	After sale service		Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
